HVAC Duct Tape, Aluminum Foil Tape with Liner, Rubber-resin Adhesive

HVAC Duct Tape, Aluminum Foil Tape with Liner, Rubber-resin Adhesive

HVAC Duct Tape, Aluminum Foil Tape with Liner, Rubber-resin Adhesive

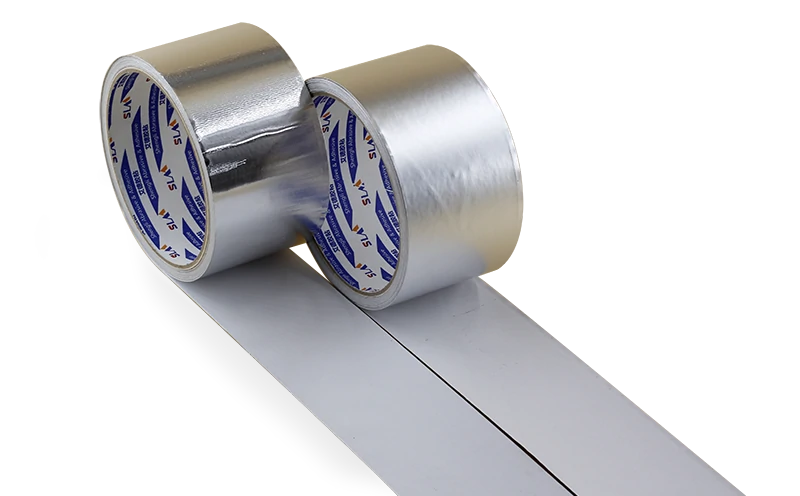

HVAC aluminum foil duct tape is specifically designed for HVAC installations and repairs. It features an aluminum foil backing that is coated with a rubber-resin adhesive, which is protected by an easy-release silicone paper liner.

This duct tape offers exceptional performance, thanks to its rubber resin hot melt adhesives that provide excellent initial adhesion. It is effective for bonding a wide range of surface materials, including rough surfaces. Additionally, it is a waterproof solution that adheres well to both flexible and rigid materials, catering to the needs of both professional contractors and homeowners. The aluminum tape blends seamlessly with ductwork, vents, and other forced air components that require extra metal foil seals.

Click to download PDF catalog of Aluminum Foil Tape

Tape Features
- Strong adhesion: High-quality, high-tensile HVAC duct tape coated with a Rubber resin hot melt adhesive that provides a durable bond at both flexible and rigid materials.
- Durability: Aluminum backing provides a high level of durability, protecting against physical damage and corrosion.
- Flexibility and conformability: While strong, the foil allows for flexibility, making it easy to apply to irregular surfaces and around corners.
Applications
- HVAC duct sealing: The primary use of this tape is to seal seams and joints in HVAC duct systems to prevent air leaks that can significantly impact system efficiency and energy consumption.
- Insulation: Due to its reflective properties and ability to act as a barrier against moisture and heat, this tape is also used to insulate heating and cooling systems, helping to maintain temperature and improve energy efficiency.
- Repair: It can be used to quickly and effectively repair metal ductwork, insulation and other equipment in HVAC systems, providing a durable seal that withstands environmental stresses.

Technical Parameters

PRODUCT CODE	No.AF1805	No.AF2205	No.AF2505	No.AF3005
Foil Thickness	18 Micron	22 Micron	25 Micron	30 Micron
Total Thickness	50 Micron	55 Micron	60 Micron	70 Micron
Adhesion to Steel	15N/25mm	15N/25mm	15N/25mm	18N/25mm
Tensile Strength	35 N/25mm	40 N/25mm	45 N/25mm	45 N/25mm
Elongation	3.0%	3.0%	3.0%	3.0%
Service Temperature	-20℃ to +80℃	-20℃ to +80℃	-20℃ to +80℃	-20℃ to +80℃
Applying Temperature	-10℃ to +40℃	-10℃ to +40℃	-10℃ to +40℃	-10℃ to +40℃

PRODUCT CODE	No.AF3605	No.AF4005	No.AF5005	No.AF7505
Foil Thickness	36 Micron	40 Micron	50 Micron	75 Micron
Total Thickness	76 Micron	80 Micron	90 Micron	125 Micron
Adhesion to Steel	18N/25mm	18N/25mm	18N/25mm	18N/25mm
Tensile Strength	50 N/25mm	55 N/25mm	75 N/25mm	100 N/25mm
Elongation	3.0%	3.0%	3.5%	5.0%
Service Temperature	-20℃ to +80℃	-20℃ to +80℃	-20℃ to +80℃	-20℃ to +80℃
Applying Temperature	-10℃ to +40℃	-10℃ to +40℃	-10℃ to +40℃	-10℃ to +40℃
