Insulation Facing Description

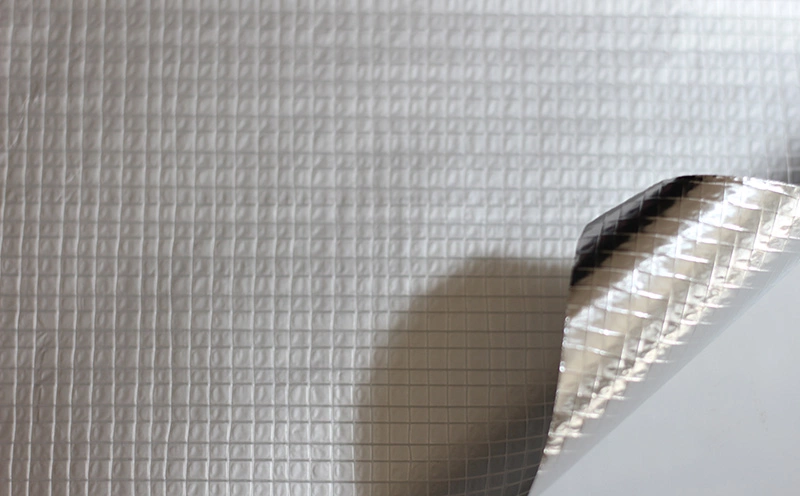

FSK Insulation Facing enhances the thermal performance of insulation by reflecting radiant heat, helping to maintain temperature control and energy efficiency in HVAC systems. The foil layer of FSK Facing acts as a vapor barrier, preventing water vapor from permeating the insulation. This helps to prevent mold growth and maintain the effectiveness of the insulation. The combination of foil, scrim, and kraft paper layers provides FSK Facing with durability and resistance to tearing, puncturing, and other physical damage. FSK Insulation Facing is compatible with a wide range of insulation materials, including fiberglass, mineral wool, and foam insulation boards. The kraft paper layer in FSK Facing adds a level of fire resistance to the material, making it suitable for applications where fire safety is a concern. It is easy to install and can be applied to insulation materials using adhesive or mechanical fasteners. The Facing can help reduce noise transmission through insulation systems, contributing to soundproofing in addition to thermal insulation.

Insulation Facing Technical Data

Insulation Facing Composition:

Composition

Description

Value (English)

Value (Metric)

Foil

Aluminum

0.28 mil

7 micron

Reinforcing- MD

Fiberglass

2/ inch

8/100mm

Reinforcing-XD

Fiberglass

3 /inch

12/100mm

Adhesive

Heat-resistance

-

-

Kraft

Natural

36.6lbs / 3000 ft2

60gsm

Heat-Activated Coating

Polyethylene

0.8 mil

20 micron

Facing Properties:

Physical properties

Test Method

Value (English)

Value (Metric)

Basis weight

Scale

23lbs / 1000 ft2

112gsm

Permeance (WVTR)

ASTM E96,

Procedure A

0.02 perm

1.15 ng/N.s

Tensile Strength-MD

ASTM D828

31.8 lbs / In

140 N/25mm

Tensile Strength-XD

ASTM D828

17lbs / In

75 N/25mm

Burst Strength

ASTM D774

47.8psi

33 N/cm2

Low temperature

Resistance

ASTM D1790

4 hrs @

-40℉ (-40℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

High temperature

Resistance

ASTM D1790

4 hrs @

+240℉ (+116℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

Emissivity

ASTM E408

-0.03

-0.03
