Insulation Facing Description

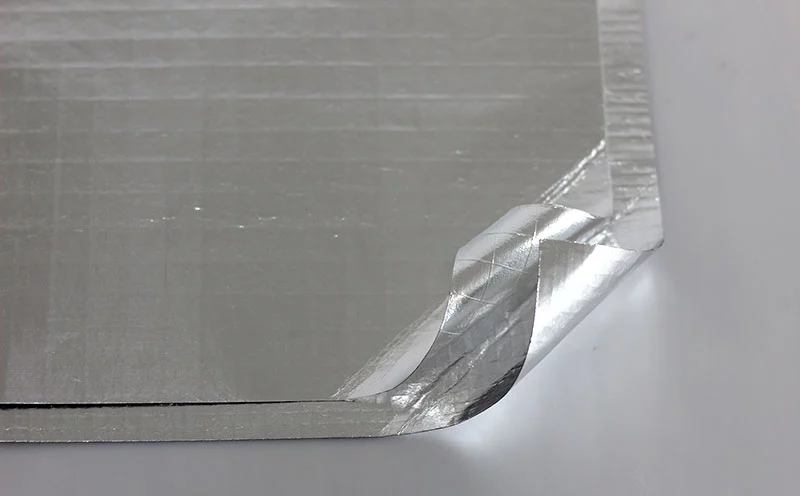

FSK Foil Scrim Kraft Facing is a type of insulation facing material commonly used in the construction industry. It consists of three layers: a layer of aluminum foil, a fiberglass scrim reinforcement, and a kraft paper backing. The aluminum foil layer provides thermal insulation and acts as a radiant barrier, while the fiberglass scrim adds strength and durability to the material. The kraft paper backing, often treated to have vapor-retardant properties, prevents moisture diffusion through the insulation. No need for extra adhesive when using this foil scrim kraft paper.The thicker kraft provides neat apperance and enhances tensile strength, tear resistant and durability.

FSK Foil Scrim Kraft Facing is compatible with various insulation materials and is used in applications such as walls, roofs, and HVAC ducts to improve energy efficiency and protect against moisture and fire.

Insulation Facing Technical Data

Insulation Facing Composition:

Composition

Description

Value (English)

Value (Metric)

Foil

Aluminum

0.28 mil

7 micron

Reinforcing- MD

Fiberglass

2/ inch

8/100mm

Reinforcing-XD

Fiberglass

3 /inch

12/100mm

Adhesive

Heat-resistance

-

-

Kraft

Natural

30lbs / 3000 ft2

50gsm

Heat-Activated Coating

Polyethylene

0.8 mil

20 micron

Facing Properties:

Physical properties

Test Method

Value (English)

Value (Metric)

Basis weight

Scale

20.8lbs / 1000 ft2

102gsm

Permeance (WVTR)

ASTM E96,

Procedure A

0.02 perm

1.15 ng/N.s

Tensile Strength-MD

ASTM D828

28.4 lbs / In

125 N/25mm

Tensile Strength-XD

ASTM D828

14.8lbs / In

65 N/25mm

Burst Strength

ASTM D774

43.5psi

30 N/cm2

Low temperature

Resistance

ASTM D1790

4 hrs @

-40℉ (-40℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

High temperature

Resistance

ASTM D1790

4 hrs @

+240℉ (+116℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

Emissivity

ASTM E408

-0.03

-0.03
