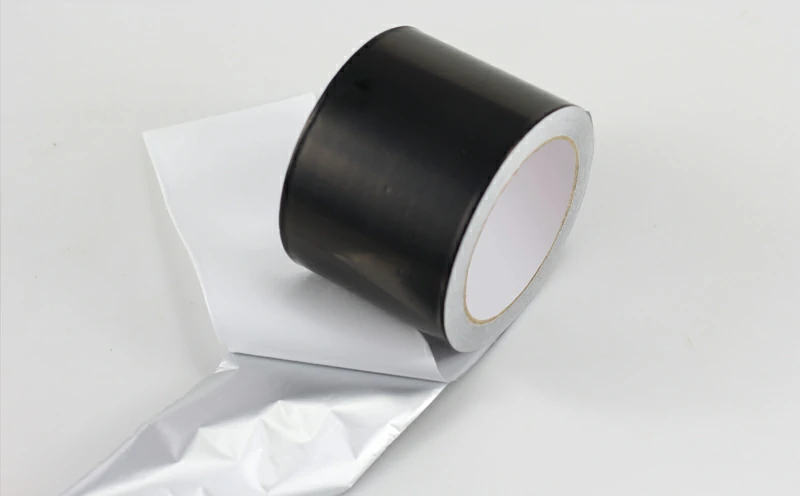

Black aluminum tape is a matte-black lacquered non-reflective tape. Used for taping exposed edges and board joints of HVAC ductwork system.
Black Aluminum Tape’s backing is 30 micron (1.2mil) Matte black Aluminum foil, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper. Also used to block lighting spills on heat generating equipment. Matte black finish does not reflect light.
Black aluminum tape will be offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees). The aluminum foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications.
Entertainment industry for blocking and suppressing spills and leakages on heat generating equipment such as projectors, light cans, barndoors and similar equipment. Lighting decorators / engineers can use it to create shadows, form barn doors and adapt gobos. Used in situations where extreme heat might otherwise burn flags or cutters. Also used in the construction industry for joining elastomeric insulation systems.
|
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
|
Backing Thickness |
30 Micron |
1.2Mil |
PSTC-133 / ASTM D 3652 |
|
Total Thickness |
70 Micron |
2.8 Mil |
PSTC-133 / ASTM D 3652 |
|
Adhesion to Steel |
20N/25mm |
72Oz./In. |
PSTC-101 / ASTM D 3330 |
|
Tensile Strength |
45 N/25mm |
10.2Lb/In |
PSTC-131 / ASTM D 3759 |
|
Elongation |
3.0% |
3.0% |
PSTC-131 / ASTM D 3759 |
|
Service Temperature |
-20℃ to +80℃ |
-4℉ to +176℉ |
|
|
Applying Temperature |
-10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
| 50mm x 50m | 2” x 55yds |
| 75mm x 50m | 3” x 55yds |
| Log Roll: | 1020mm x 50m |
| Jumbo Roll: | 1020mm x 3000m |
