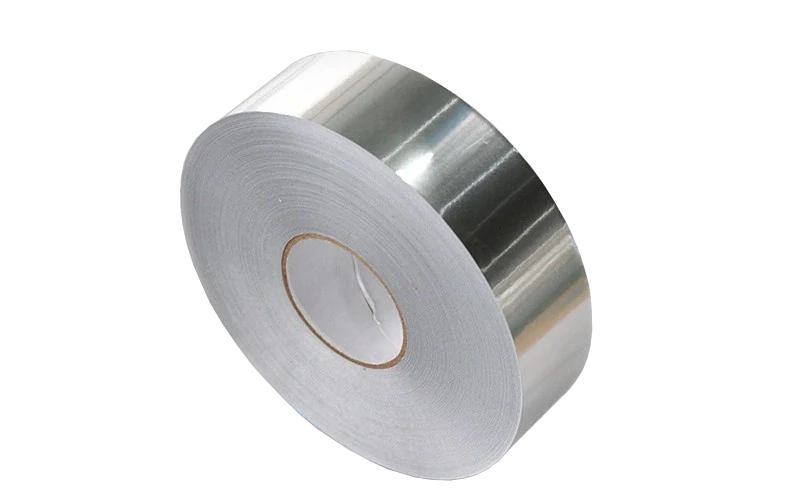

Aluminum foil adhesive tape is commonly used to secure duct seams, connections, and joints. It has excellent waterproof properties. The tape is a shiny silver color.

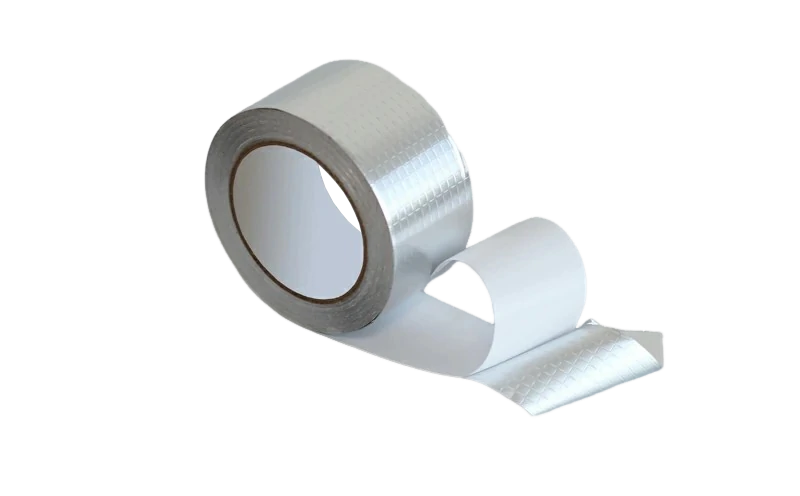

Aluminum foil adhesive tape is a dead-soft aluminum foil tape. Thickness 36um normal Aluminum foil backing, coated with Acrylic adhesive, protected by an easy-release silicone paper liner. It with foil backing makes for a vapor-tight seal that effectively ombats moisture, contamination and corrosion.
Adheres tightly when smoothed down on work surfaces. Easy to handle, easy to apply and readily confirms to irregular surfaces. Aluminum foil adhesive tape dead soft foil backing provides excellent conformability and solvent resistance. Aging is practically non-existent because of the inherent stability of the aluminum foil.
AFA Aluminum foil tape is used to exposed surfaces of duct wrap, HVAC ductwork, Exterior wall insulation, Metal building insulation, Pipeline insulation, Hot water tank insulation.
|
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
|
Backing Thickness |
36Micron |
1.44Mil |
PSTC-133 / ASTM D 3652 |
|
Total Thickness |
76 Micron |
3.0Mil |
PSTC-133 / ASTM D 3652 |
|
Adhesion to Steel |
20N/25mm |
72Oz./In. |
PSTC-101 / ASTM D 3330 |
|
Tensile Strength |
50 N/25mm |
11.4Lb/In |
PSTC-131 / ASTM D 3759 |
|
Elongation |
3.0% |
3.0% |
PSTC-131 / ASTM D 3759 |
|
Service Temperature |
-30℃ to +150℃ |
-22℉ to +302℉ |
|
|
Applying Temperature |
-10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
| 50mm x 50m | 2” x 55yds |
| 75mm x 50m | 3” x 55yds |
| Log Roll: | 1020mm x 50m |
| Jumbo Roll: | 1020mm x 3000m |
